KS-8809 Bluetooth 5.4 OBD2 Adapter – 9–30V (12V/24V), PIC25K80 Chip, Power Switch

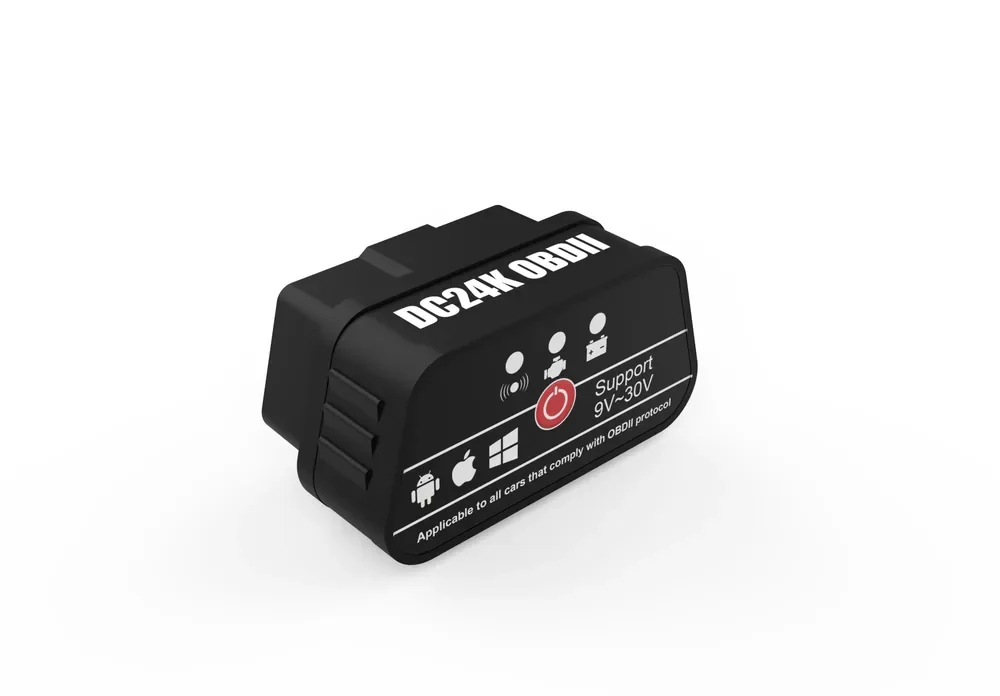

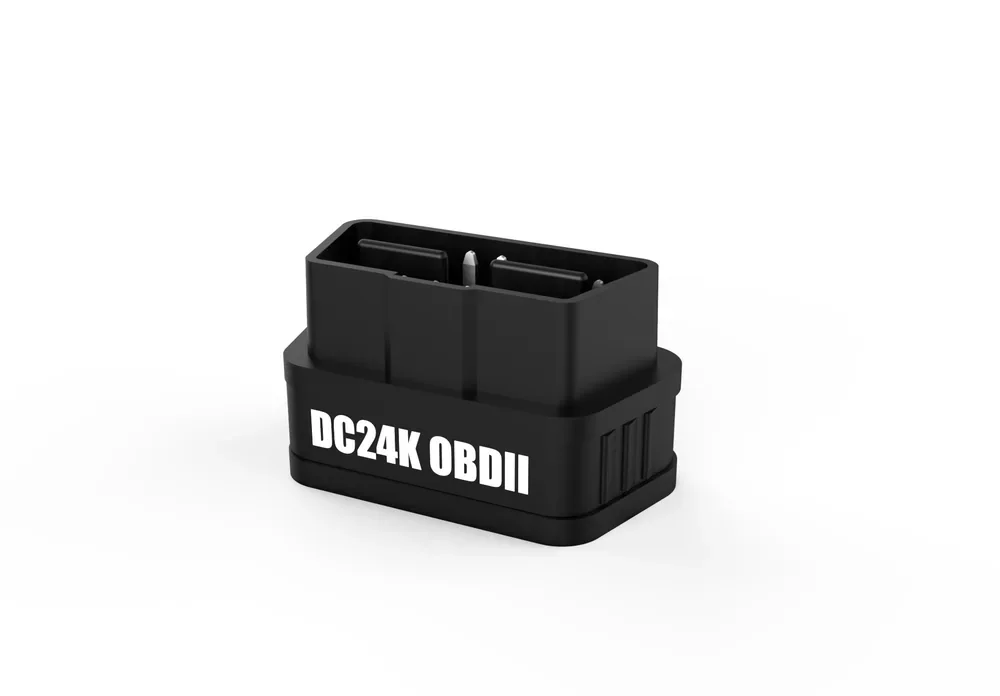

A compact Bluetooth 5.4 OBD2 adapter (model DC24K / KS-8809) built around the PIC25K80 chip. It reads live engine data and fault codes on a phone or PC through mainstream third-party OBD apps, accepts a wide 9–30V input so it can be used on 12V and 24V vehicles, and has a physical on/off switch so it does not need to be unplugged to protect the battery. Highlights - Bluetooth 5.4 connection; works with iOS, Android and Windows - Compliant with OBD II / EOBD standards - Wide 9–30V input: 12V and 24V gasoline vehicles and some diesel vehicles - DC-DC power supply (up to 95% efficiency) with low power consumption (320 mW / 20 mA) - Independent CAN controller, MCU and radio; upgradable firmware - Live data: RPM, ignition timing, fuel trim, coolant temperature, fuel consumption, voltage, freeze frame, monitor tests, acceleration test, MIL status, HUD mode, trip analysis - Physical power switch — no need to unplug it from the OBD2 port - Supported protocols: ISO 9141-2, ISO 14230-4 KWP (5-baud and fast init), ISO 15765-4 CAN (11/29-bit, 500/250 kbaud), SAE J1850 PWM, SAE J1850 VPW, SAE J1939 Specifications - Model: DC24K (KS-8809); chip: PIC25K80 - Product size: 4.6 × 2.4 × 2.7 cm; net weight 16.2 g; color box 6.5 × 9.7 × 2.7 cm - Color: black (custom colors available) - Certification: FCC, CE, RoHS - Package contents: OBD2 adapter ×1, user manual ×1 - Packing: 250 pcs per carton, 50 × 31 × 35 cm, 10.4 kg Ordering MOQ 10 pcs. Samples available. Custom brand (color, color box, logo sticker): MOQ 1,000 pcs. Apple/iOS app compatibility depends on the third-party app used — confirm with your sample.
